Stylus 5E

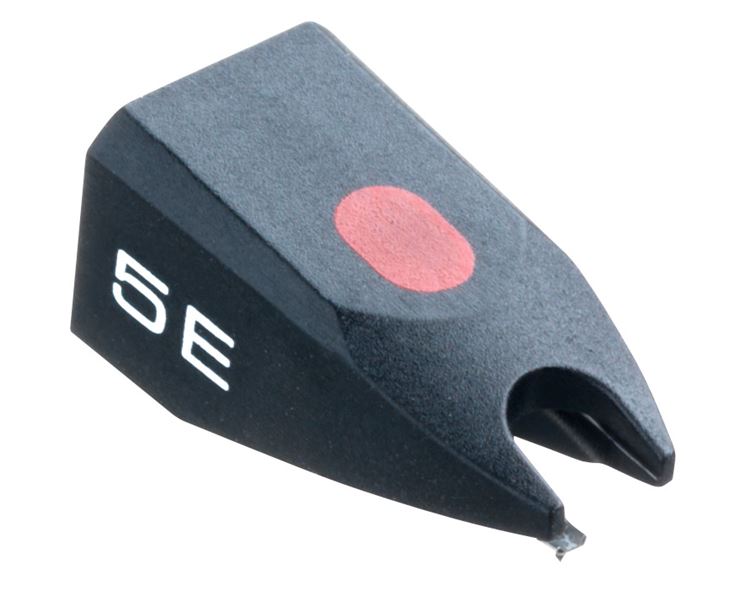

Ortofon Stylus 5E.

Recommended for:
 OM 5E, Super OM 5, OMP 5E, OMB 5E, and OMT 5E.

$62.99
Notify me when available
Find nearest dealer

Specifications
  • Frequency response 20 Hz - 20 kHz
    3 / - 3 dB
  • Tracking ability at 315 Hz
    60 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Stylus type
    Elliptical
  • Stylus tip radius
    r/R 8/18 µm
  • Tracking force range
    1.5-2.0 g (15-20 mN)
  • Tracking force, recommended
    1.75 g (17.5 mN)
  • Tracking angle
    20°
  • Cartridge weight
    stylus = 1 g
  • Stylus colour
    Black
    • Download user guide

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Scott Stover
Since my first Ortofon purchase 30-something years ago

Since my first Ortofon purchase 30-something years ago, I’ve kept my personal turntables (Technics, Scott) tracking perfectly with superb audio quality. All the discs in my collection are cared for by keeping the tracking force at 2.5g or less. In broadcast and live event settings, I’ve seen Stanton products in use, but don’t have any reservations about recommending Ortofon for all applications!
