Cartridges and
headshells' dimensions

Understanding the essential dimensions of cartridges and headshells is a crucial aspect of the audiophile journey, one that can significantly enhance your experience. These dimension charts serve as invaluable tools, aiding in the proper mounting and alignment of cartridges with tonearms.

Accurate alignment of your cartridge is critical for optimal tracking and sound reproduction. Cartridge dimension charts provide the necessary details to achieve this precision. They specify mounting hole locations, stylus overhang, and mounting distances, enabling you to align the cartridge's cantilever precisely with the record groove.

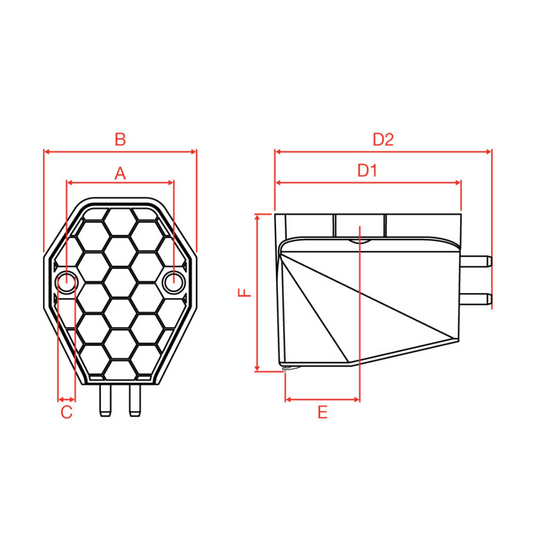

Ortofon cartridges mounting dimensions

<br>A - distance between centres of mounting holes</br> <br>B - cartridge width</br> <br>C - mounting holes diameter</br> <br>D1 - cartridge length without connector pins</br> <br>D2 - cartridge length including connector pins</br> <br>E - distance from stylus tip to the centre of mounting holes</br> <br>F - the height from stylus tip to top cartridge mounting surface</br> <br>NB: D1 and D2 are identical for MC Cadenza series, MC Windfeld, MC Jubilee, MC Kontrapunkt series, and MC Valencia. Connector pins in these cartridges models are lowered into the cartridge body.</br>

Open Dimensions Chart

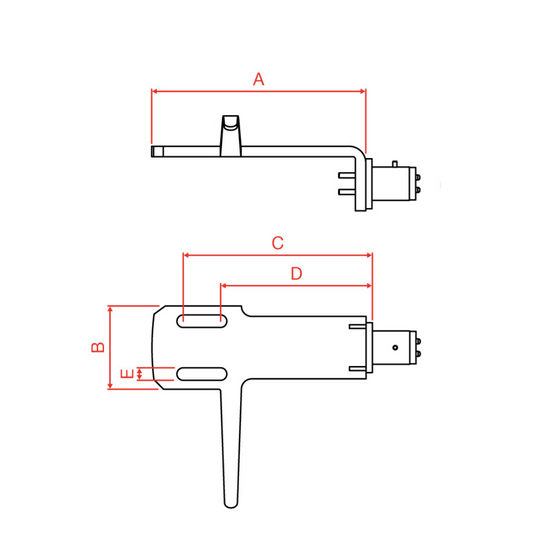

Ortofon headshells' mounting diemnsions

<b>A - Headshell length </br> B - Headshell width <br>C - Mounting distance max</br> D - Mounting distance min. <br> E - Screw diameter max.</br>

Open Dimensions Chart
