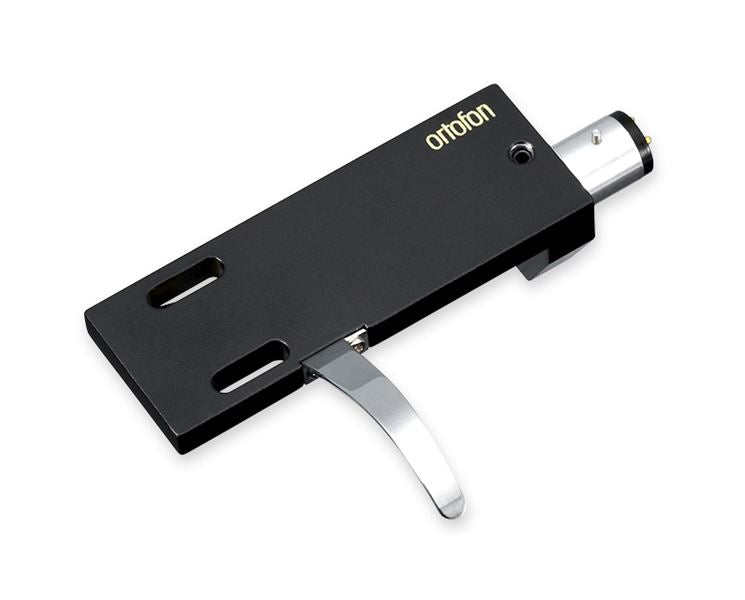

Ortofon LH-4000 headshell

LH-4000

The LH-4000 is a basic high-quality headshell designed specifically for HiFi applications. Providing a clean, minimalist aesthetic, the LH-4000 is great for a wide variety of cartridges, specially recommended for the MC Quintet series.

$113.99
Find nearest dealer

Specifications
  • Mounting distance
    39.5 mm - 45.6 mm
  • Headshell material
    Solid aluminum build
  • Weight without screws
    14.3 grams
  • Headshell length
    51.9 mm
  • Headshell width
    19.1 mm

Cartridge Dimensions

Open Dimensions Chart

The LH-4000 comes with leadwires for easy and convenient connection

All Ortofon cartridges have a color coding of the terminals, indicating red and green for right channel, respectively hot and ground terminal. White and blue for left channel, respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system whenever connected inside the cartridge. We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, while Ortofon headshells' PINs diameter is only 1.0 mm.

A - Headshell length <br>

B - Headshell width <br>

C - Mounting distance max. <br>

D - Mounting distance min. <br>E - Screw diameter max.<br>
