Concorde MKII Twin DJ

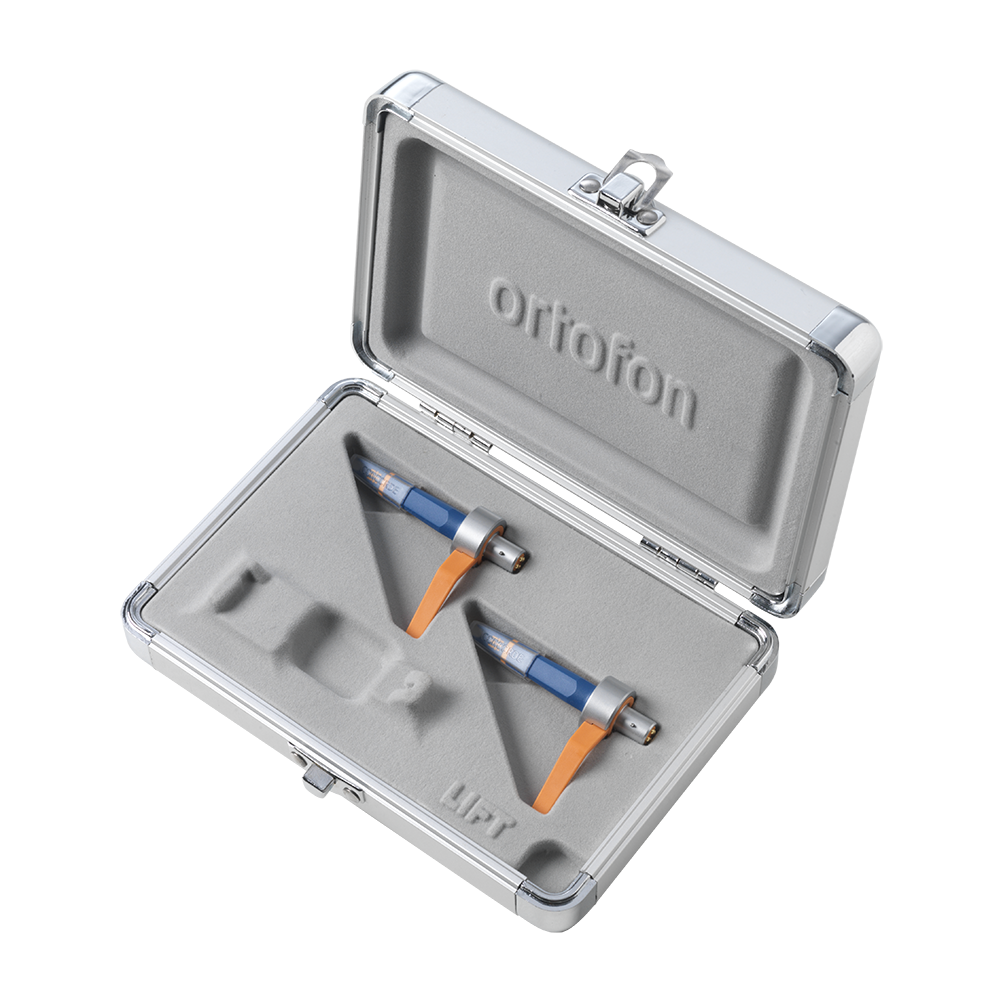

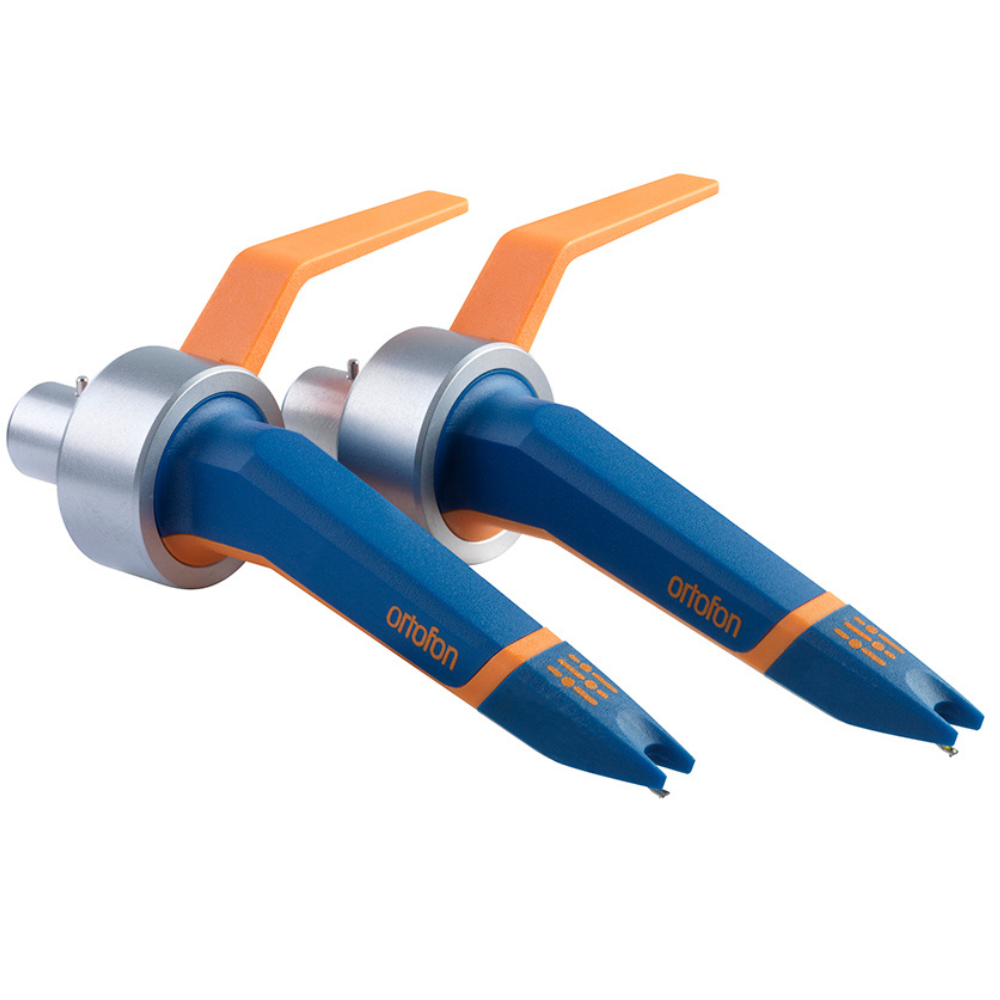

The Concorde TWIN includes two Concorde MKII DJ cartridges with preinstalled styli, all conveniently housed within a Flight case. The Concorde DJ is the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling. Not only does the cartridge have sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear.

Variants

$299.99
Find nearest dealer

Specifications
  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    6 mV
  • Channel separation at 1 kHz
    22 dB
  • Tracking ability at 315 Hz
    100 μm
  • Compliance, dynamic, lateral
    14 μm/m N
  • Cantilever material
    Aluminium
  • Stylus type
    Spherical diamond
  • Stylus tip radius
    R 18 μm
  • Tracking force range
    3 - 5 g
  • Tracking force, recommended
    4 g
  • Internal impedance, DC resistance
    700 Ohm
  • Cartridge weight
    18,5 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    450 mH
  • Recommended load capacitance
    200-600 pF
  • Replacement stylus
    Stylus CC MKII DJ
    • Download user guide
    Download brochure

Cartridge Dimensions

Open Dimensions Chart

OverviewFeaturesReviews

DJs are the new rockstars

Excellent groove handling

Accuracy level

The DJ is great for any style of music. It has a spherical stylus and an extremely balanced cantilever that provides outstanding rigidity. Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear. All in all: improved tracking, alongside of accurate sound reproduction and an excellent groove handling.

Output

The Concorde MKII DJ cartridge guarantees exceptional sound quality and precise tracking capabilities. Additionally, it offers a balanced output of 6 mV and remarkable transparency across the entire sonic spectrum.

Musical combo for your live sets

The DJ in action

DJ ND presents a musical combo which can be used to spice up your livestreams and podcasts.

Incredible sound
